Original price was: $69.99.$53.89Current price is: $53.89.
- Expertly Sourced, Quality Guaranteed
- 100% High-Quality Guarantee
- SSL encryption, absolutely safe shopping
- Get the Best for Less

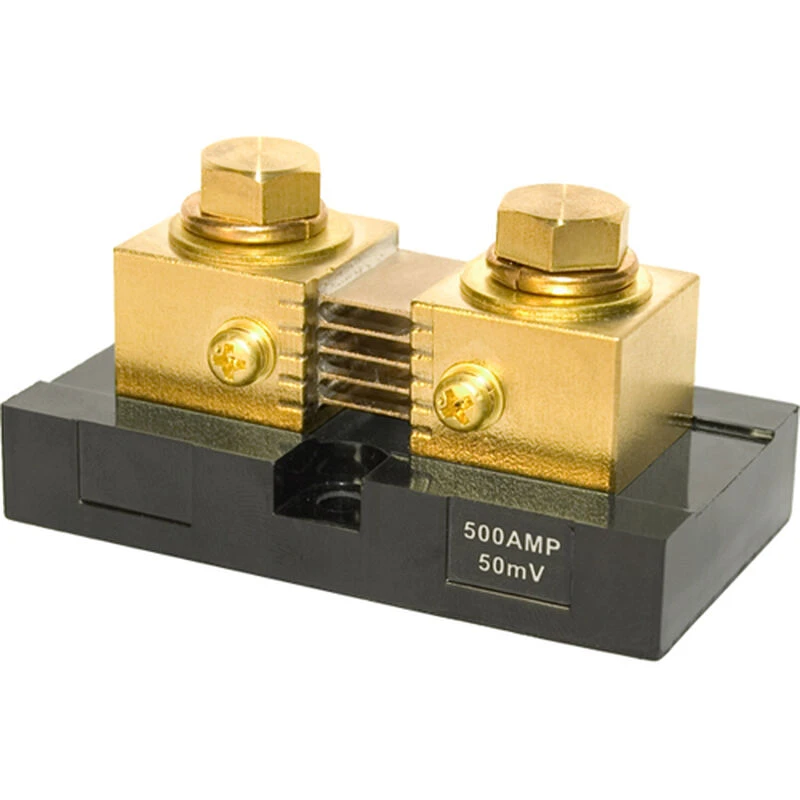

Companion to digital ammeters and multimeters capable of reading up to 500A
Ammeters and multimeters require a shunt to provide amperage information. This Blue Sea Systems shunt is designed to work with digital meters. The large terminal bolts and screws handle the torque to achieve the contact required to ensure accurate amperage readings.
Key Features
- Compatible with digital ammeters and multimeters
- For continuous operation at 66% of capacity
- Lifetime warranty
Specifications
- Continuous Duty: 66% of rated current
- Fill Scale: 50 milivolts
- Intermittent Duty: 300% @ 3 seconds, 100% @ 5 seconds
- Ratio: 500A DC / 50mV DC
- Shunt Type: resistive, manganin metal element
Dimensional Drawing
| Best Use | 12 Volt DC Systems , 24 Volt DC Systems |
|---|---|
| Type | Shunt |
